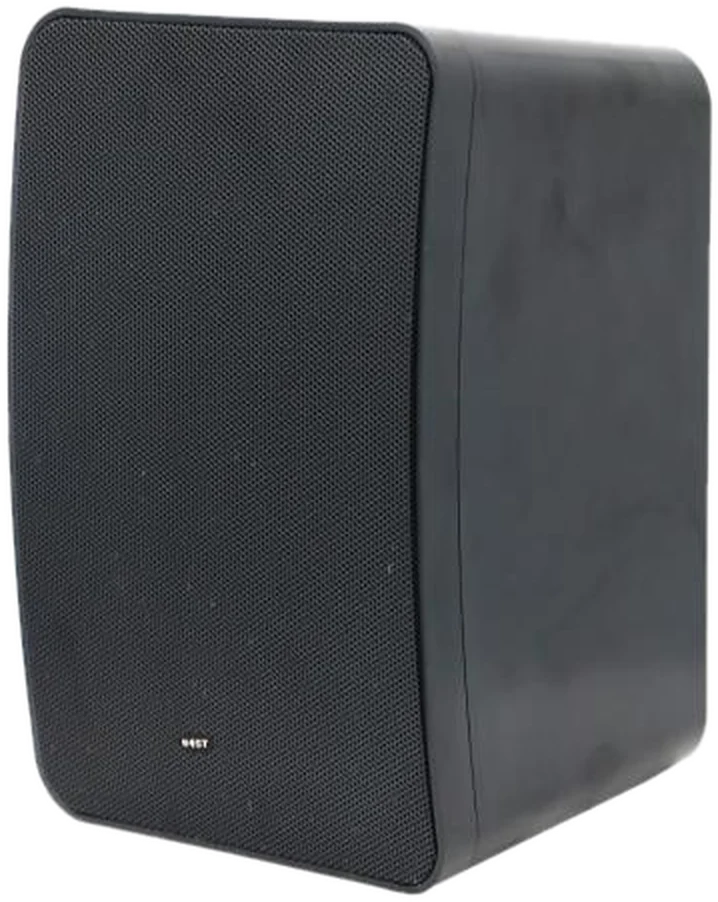

W-520
EN54-24 Wall Mount Speaker
5.25″ • 30 W • 100 V / 70 V / 8 Ω • EN54-24
On-Wall Speakers

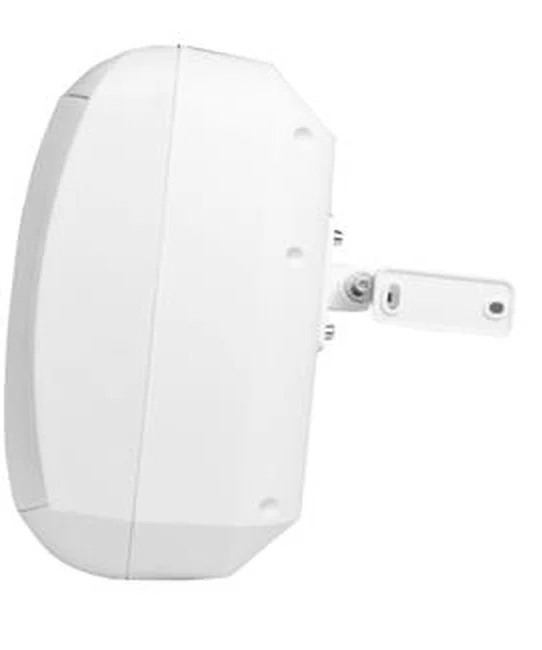

W-860
Indoor / Outdoor Wall Mount Speaker
8″ 2-Way • 60 W • 100 V / 70 V / 8 Ω • IP66
- IP66 Weatherproof
- Indoor & Outdoor BGM & Paging
- 8″ Woofer 2″ Silk Tweeter
- 60 W 120 W Max.
- 100 V / 70 V / 8 Ω Power Tapping
- 360° Rotatable Bracket
Key features
- All-weather loudspeaker for music applications and projects.

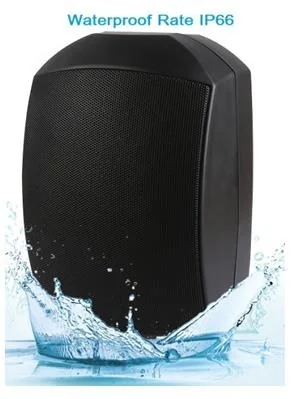

- IP66 waterproof finish for extreme weather applications.
- 8″ weatherproof woofer and 2″ silk tweeter, 2-way speaker system.
- ABS enclosure with stainless metal grille and stainless mounting bracket.
- Power taps: 60 / 30 / 15 / 7.5 W & 8 Ω.
- 100 V / 70 V line with power tapping, or low-impedance 8 Ω operation.

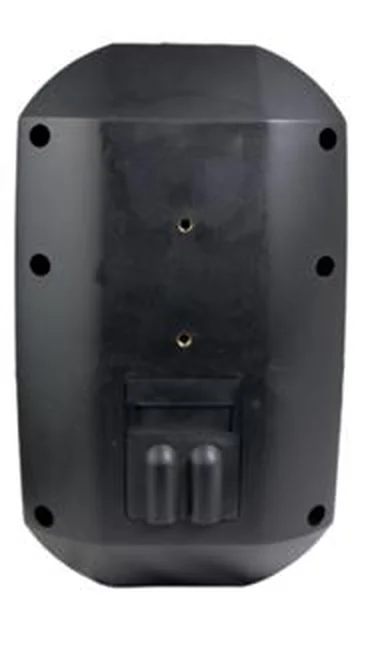

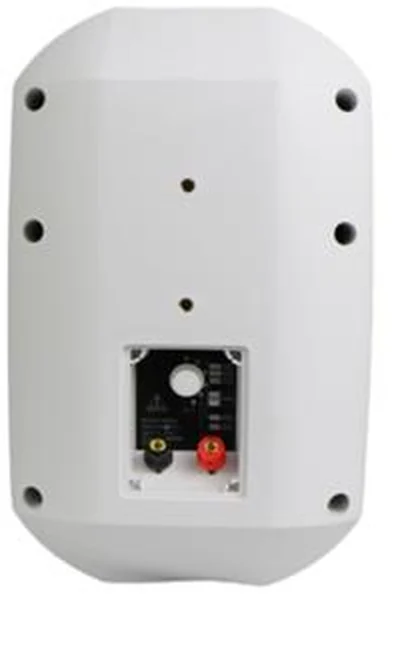

- Waterproof cable wiring cover for secure IP66 protection.

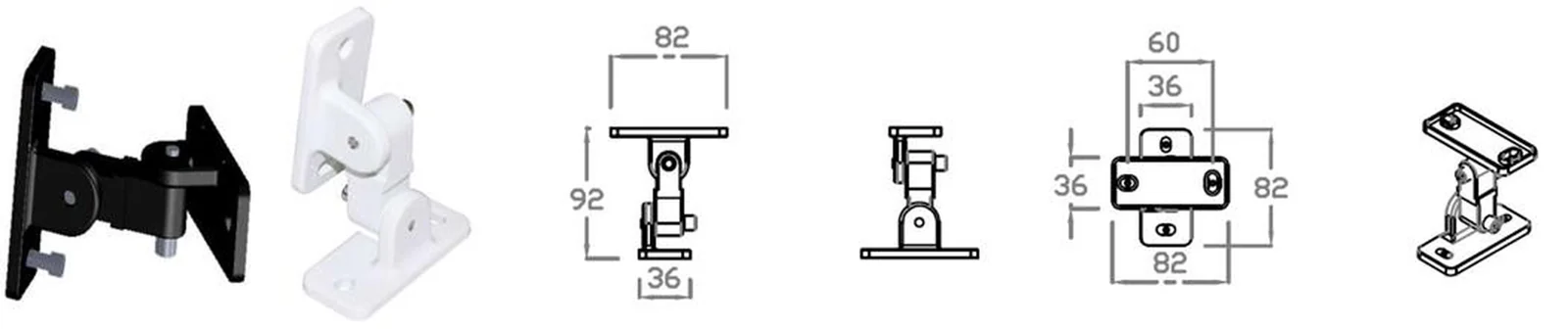

- 360° rotatable bracket for horizontal and vertical angle adjustment.
- Low-impedance 8 Ω-only versions: WSK-860DR / WSK-860DRW.
Specifications
| Model | W-860 |
|---|---|
| Description | Indoor / Outdoor Wall Mount Speaker |
| Rated Power Output | 60 W (Max. 120 W) |
| Power Taps | 60 / 30 / 15 / 7.5 W & 8 Ω |
| Line Input | 100 V or 70 V & 8 Ω |

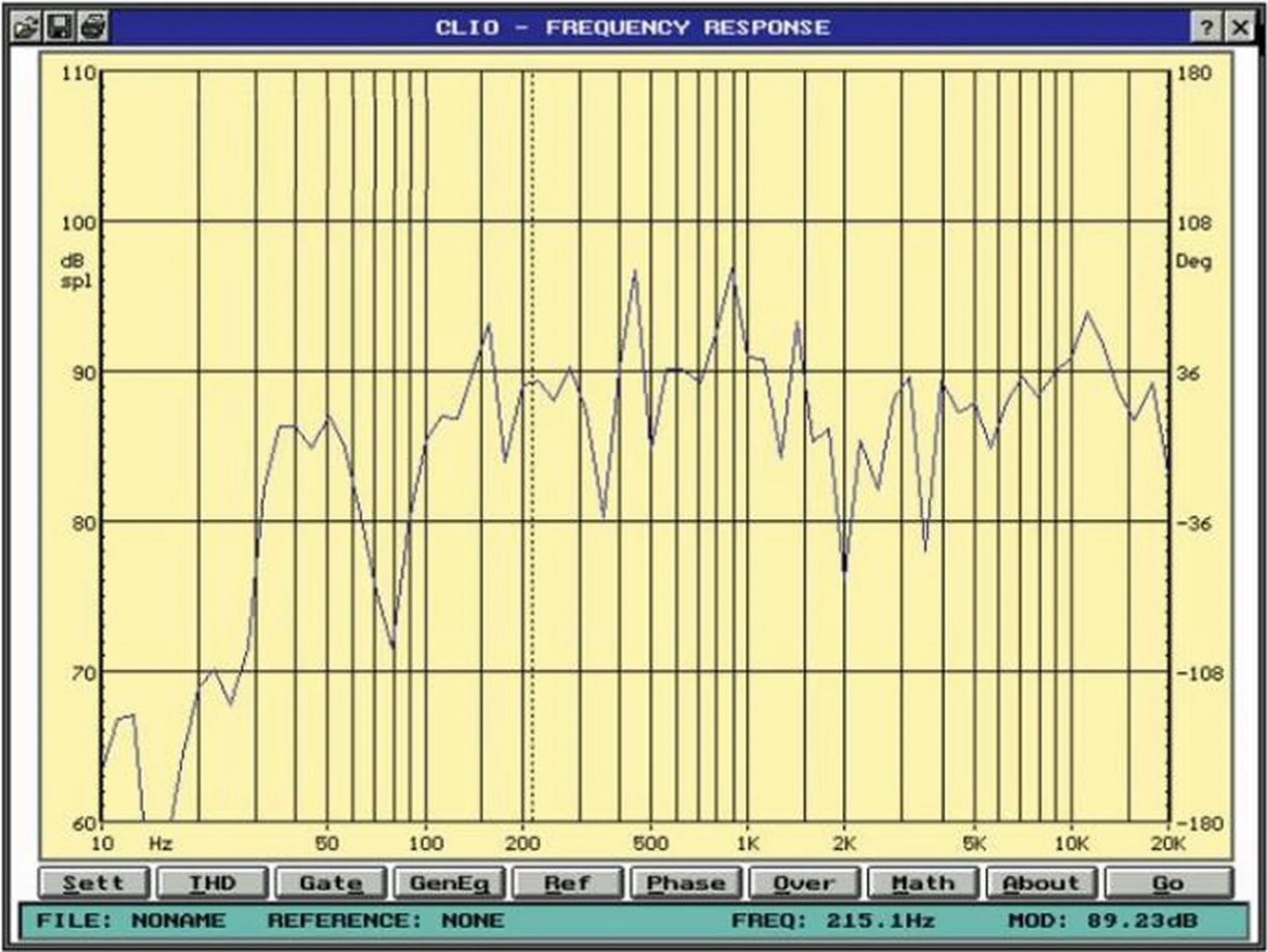

| Frequency Response | 40 Hz – 20 kHz |
| Sensitivity (1 W / 1 m) | 97 ± 3 dB, Max. SPL 118 dB (1 m) |
| IP Rating | IP66 |
| Speaker Unit | 8″ weatherproof woofer + 2″ silk tweeter, 2-way |
| Dispersion (@ 1 kHz) | 110° V × 110° H |
| Dimensions | 390 × 221 × 240.5 mm |
| Material | ABS enclosure, stainless metal grille & stainless bracket |

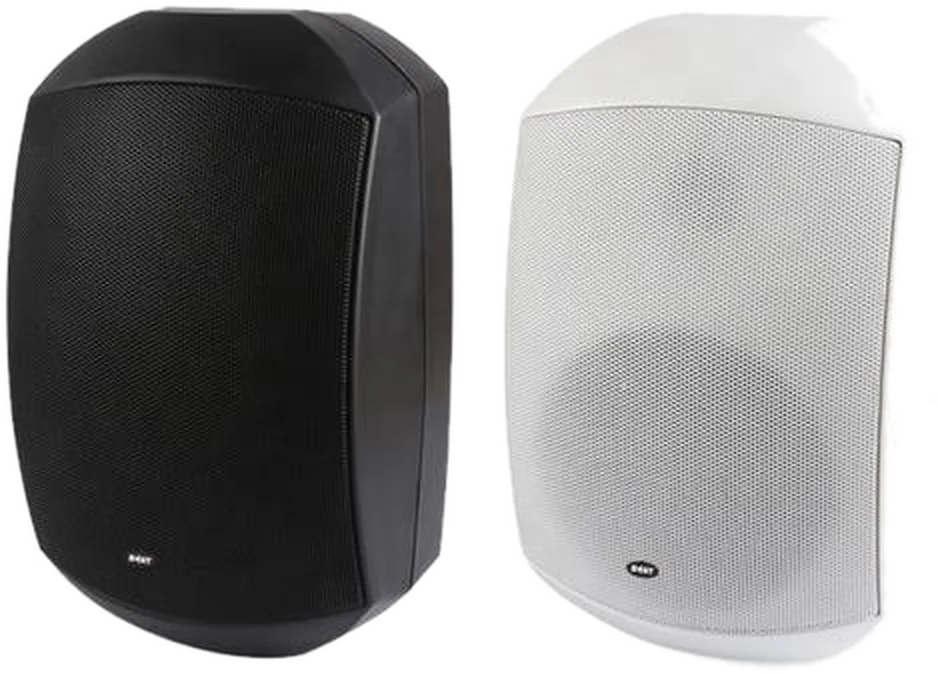

| Color | Black (W-860) / White (W-860W) |
| Mounting | 360° rotatable bracket (horizontal & vertical) |
| Net Weight | 4.8 kg |
Product details
Tender specificationArchitect & engineer text, ready to paste into your spec
The weatherproof wall mount loudspeaker shall be a 2-way design with an 8″ weatherproof woofer and a 2″ silk tweeter, rated IP66. It shall incorporate a 100 V / 70 V line transformer with power taps of 60 W, 30 W, 15 W and 7.5 W, or operate at 8 Ω (60 W rated, 120 W max). Frequency response shall be 40 Hz – 20 kHz, with a sensitivity of 97 ± 3 dB (1 W / 1 m), a maximum SPL of 118 dB and a dispersion of 110° × 110° at 1 kHz. The enclosure shall be ABS with a stainless metal grille, a waterproof wiring cover and a stainless 360° rotatable bracket. Dimensions shall be 390 × 221 × 240.5 mm, with a net weight of 4.8 kg.
