On-Wall Speakers
W-520
EN54-24 Wall Mount Speaker
5.25″ • 30 W • 100 V / 70 V / 8 Ω • EN54-24
On-Wall Speakers

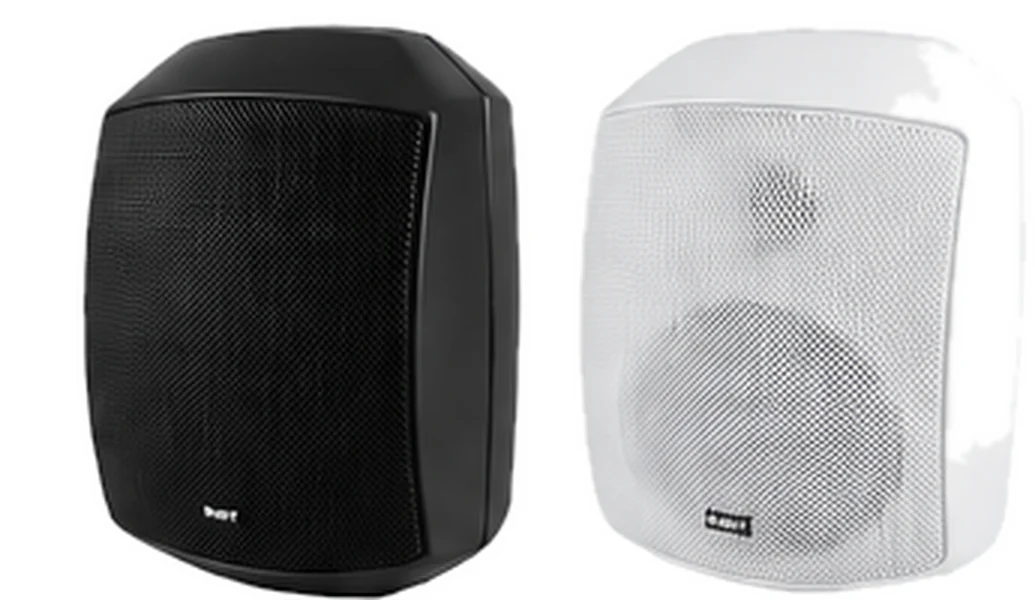

W-640
Weatherproof Wall Mount Speaker
6.5″ 2-Way • 40 W • 100 V / 70 V / 8 Ω • IP66
- W-640 (Black) IP66 Weatherproof
- Indoor & Outdoor BGM & Paging
- W-640W (White)
- 6.5″ Woofer 1″ Silk Tweeter
- 40 W Max. 80 W
- 100 V / 70 V / 8 Ω Power Tapping
- 360° Rotatable Mounting Bracket
Key features
- All-weather loudspeaker for music applications and projects.
- Ideal for indoor and outdoor BGM and paging systems.
- IP66 waterproof finish for extreme weather conditions.
- 6.5″ weatherproof woofer and 1″ silk tweeter, 2-way speaker system.
- ABS enclosure, stainless steel grille and stainless steel mounting bracket.
- Power taps: 40 / 20 / 10 / 5 / 2.5 W, or 8 Ω low-impedance operation.
- 70 V / 100 V line speaker with power tapping, or low-impedance 8 Ω speaker.
- Waterproof cable wiring cover for secure IP66 weather protection.
- Ultra-reliable, fail-safe loudspeaker even at high power loads.
- Supplied with 360° rotatable bracket for horizontal and vertical angle adjustment.
Specifications
| Model | W-640 W-640W |
|---|---|
| Description | Indoor / Outdoor Wall Mount Speaker |
| Rated Power Output | 40 W (Max. 80 W) |
| Power Taps | 40 / 20 / 10 / 5 / 2.5 W & 8 Ω |
| Line Input | 100 V / 70 V & 8 Ω |
| Frequency Response | 65 Hz – 20 kHz |
| Sensitivity (1 W / 1 m) | 94 ± 3 dB |
| Max. SPL (1 m) | 112 dB |
| IP Rating | IP66 |
| Speaker Unit | 6.5″ weatherproof woofer + 1″ silk tweeter, 2-way system |
| Dispersion (1 kHz) | Vertical 180°, Horizontal 180° |

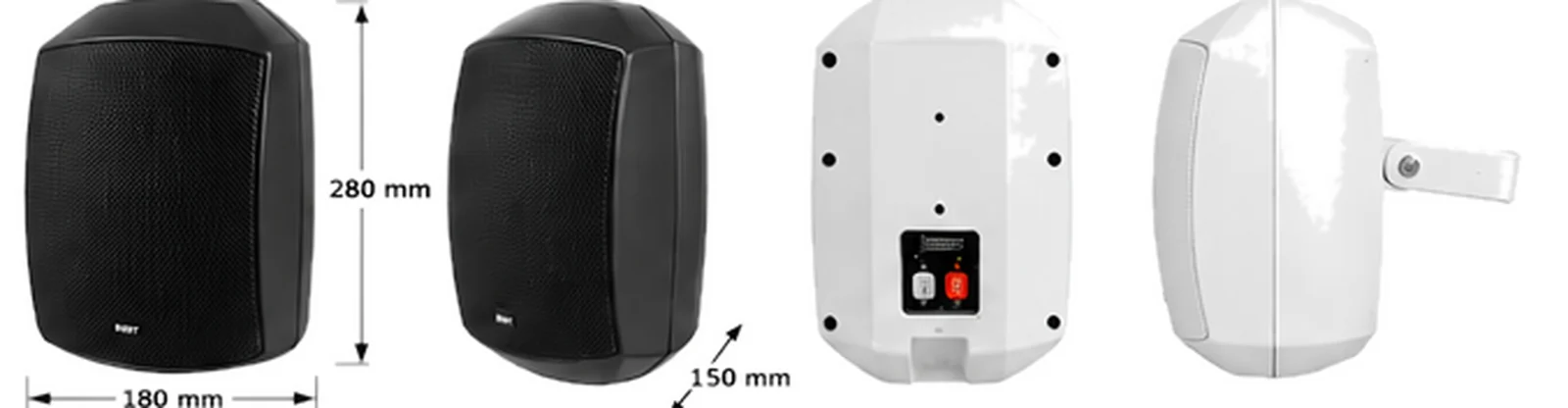

| Dimensions (W × H × D) | 180 × 280 × 150 mm |
| Material | ABS enclosure, stainless steel grille & stainless steel mounting bracket |
| Color | Black White |

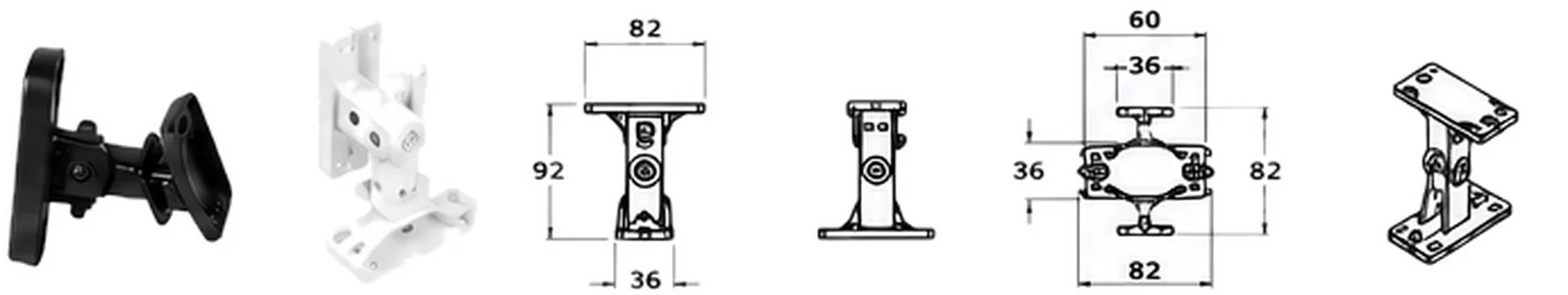

| Mounting | 360° rotatable bracket, horizontal and vertical angle adjustment |
| Net Weight | 3.5 kg |
Product details
Tender specificationArchitect & engineer text, ready to paste into your spec
The weatherproof wall mount loudspeaker shall be a 2-way design with a 6.5″ weatherproof woofer and a 1″ silk tweeter. Rated power output shall be 40 W, with a maximum power output of 80 W. The loudspeaker shall support 70 V / 100 V transformer power tapping at 40 W, 20 W, 10 W, 5 W and 2.5 W, or operate as a low-impedance 8 Ω version. The enclosure shall be IP66-rated and made of high-quality ABS, with a stainless steel grille and stainless steel mounting bracket. Dispersion shall be 180° vertical and 180° horizontal (1 kHz). Sensitivity shall be 94 ± 3 dB (1 W / 1 m), with a maximum SPL of 112 dB (1 m). Frequency response shall be 65 Hz – 20 kHz, suitable for both music and paging applications. The supplied mounting bracket shall rotate 360° for horizontal and vertical angle adjustment. Dimensions shall be 180 × 280 × 150 mm (W × H × D), with a net weight of 3.5 kg. The loudspeaker shall be available in black and white.
