On-Wall Speakers

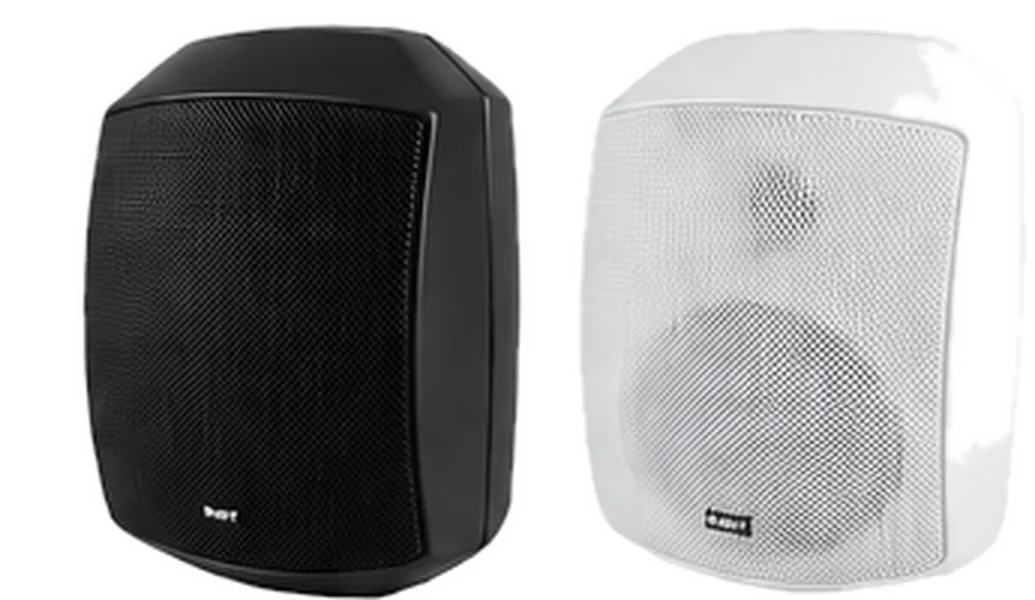

W-640
Weatherproof Wall Mount Speaker
6.5″ 2-Way • 40 W • 100 V / 70 V / 8 Ω • IP66
On-Wall Speakers
W-520
EN54-24 Wall Mount Speaker
5.25″ • 30 W • 100 V / 70 V / 8 Ω • EN54-24
- EN54-24 Certified
- Fire-Resistant ABS & Cable
- 5.25″ Dual Cone
- 30 W Max. Tap
- 100 V / 70 V / 8 Ω Power Tapping
- 360° Rotatable Bracket
Key features
- Compliant with the EN54-24 standard for voice alarm systems.
- Commercial public address speaker with 100 V / 70 V transformer.
- Ideal for background music in schools, offices, hotels and airports.
- Power taps: 30 / 15 / 7.5 / 3.75 W & 8 Ω.

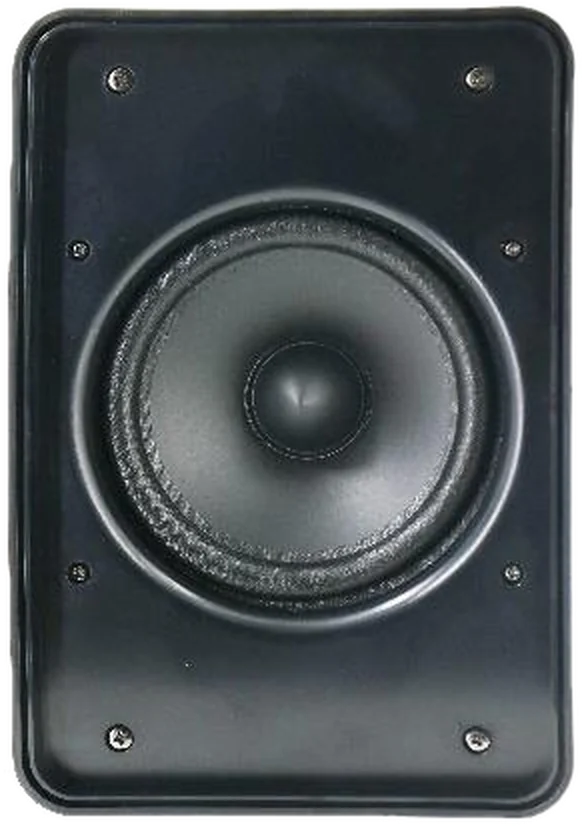

- 5.25″ paper dual-cone speaker unit.
- Fire-resistant ABS enclosure with waterproof-finish metal grille, in black.

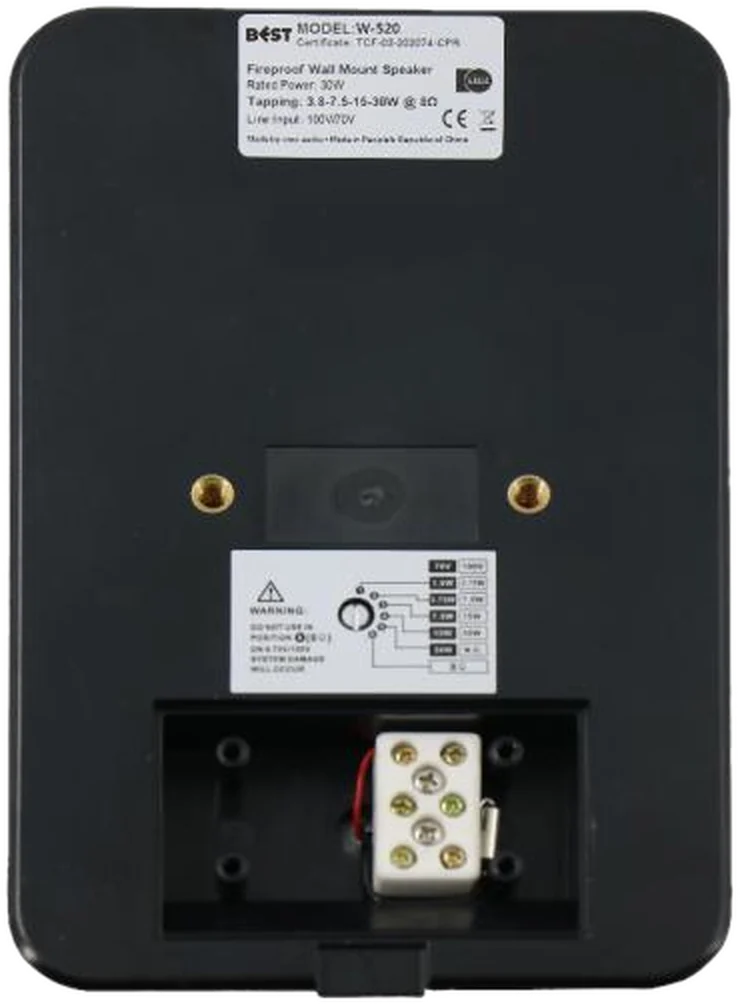

- Built-in ceramic terminal block, 95 °C fire-resistant cable and thermal fuse.

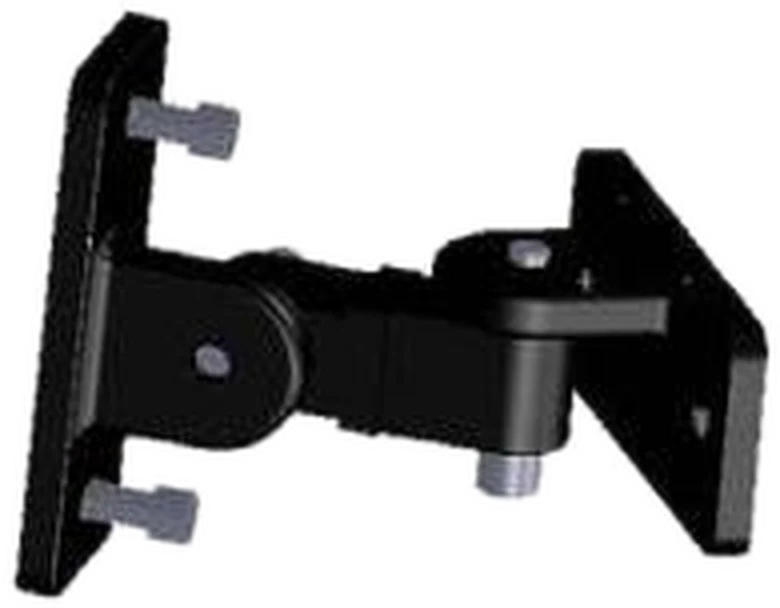

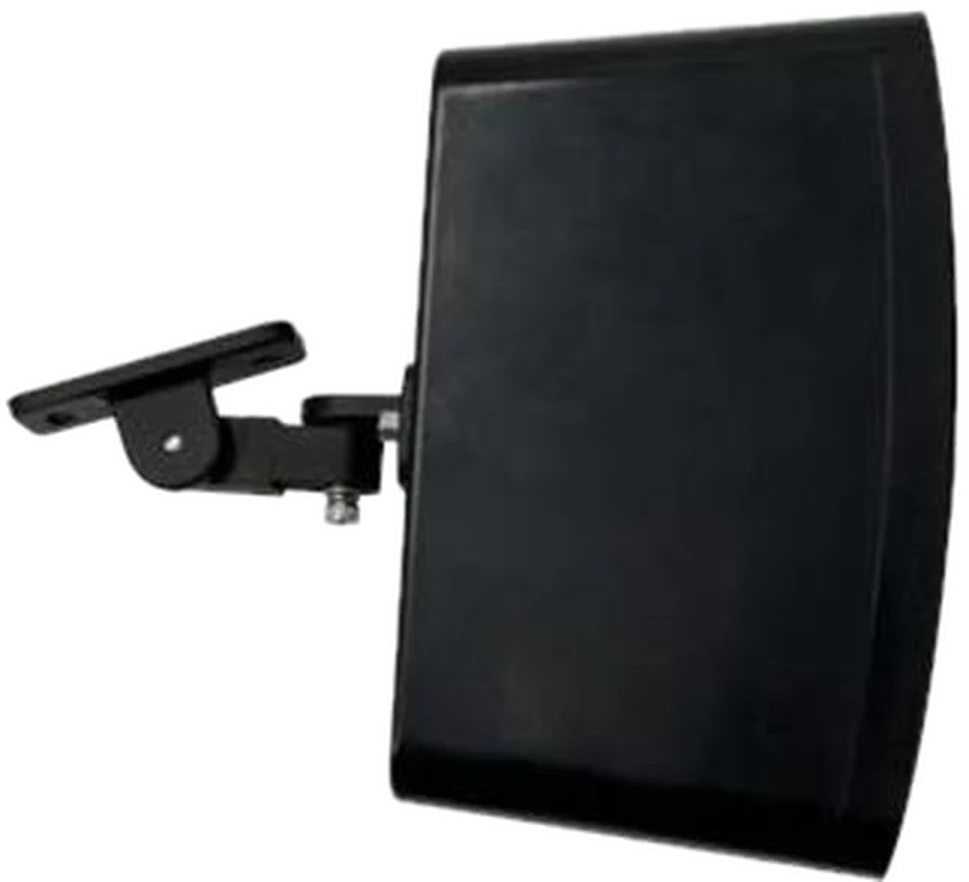

- Quick installation with the supplied 360° rotatable aluminium bracket.

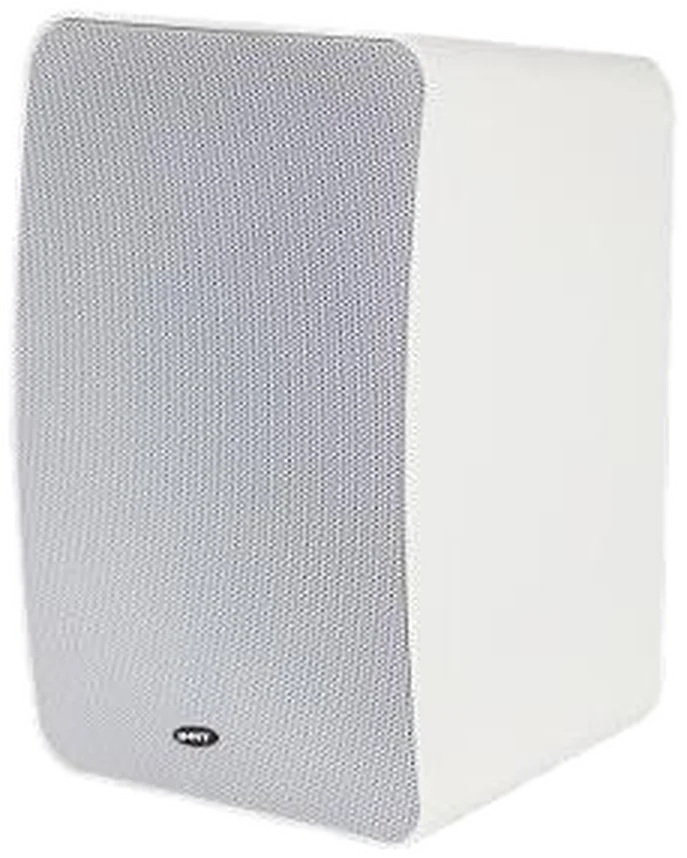

- Also available in white (W-520W).
Specifications
| Model | W-520 |
|---|---|
| Description | EN54-24 Wall Mount Speaker |
| Rated Power Output | 30 W |
| Power Taps | 30 / 15 / 7.5 / 3.75 W & 8 Ω |
| Line Input | 100 V or 70 V |

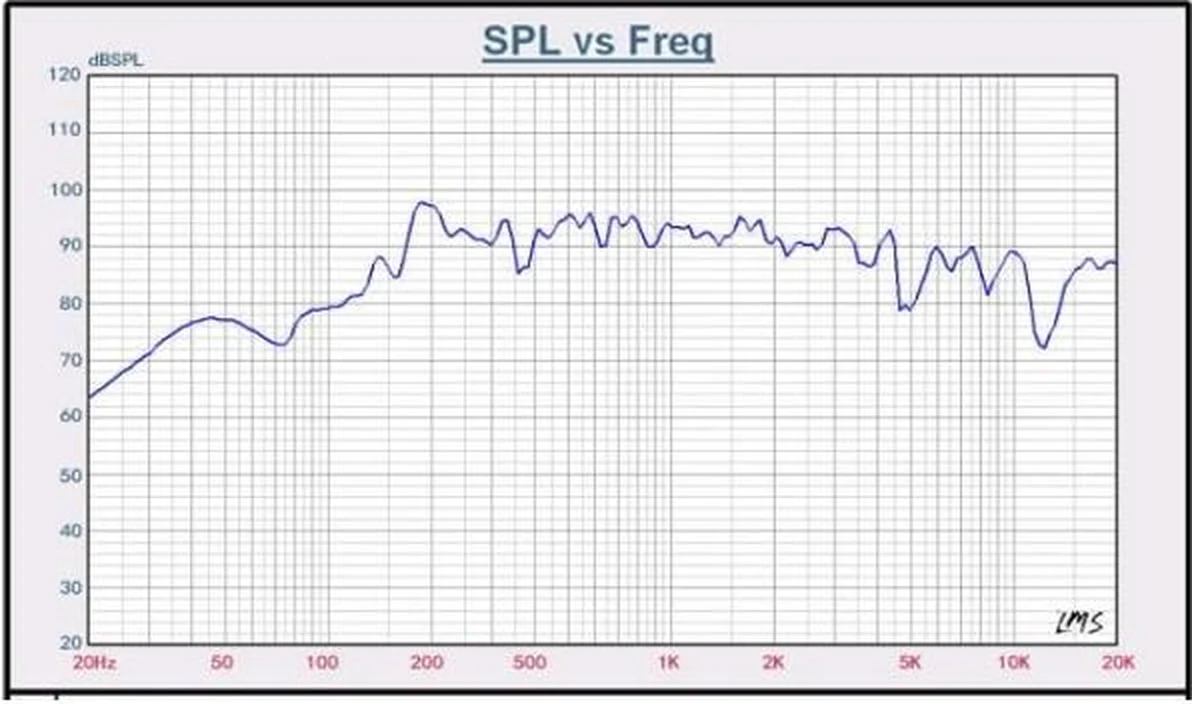

| Frequency Response | 60 Hz – 20 kHz |
| Sensitivity (1 W / 1 m) | 91 ± 3 dB |
| Speaker Unit | 5.25″ paper dual-cone |
| Standard | EN54-24 |
| Dimensions (H × W × D) | 230 × 160 × 135 mm |
| Material | Fire-resistant ABS enclosure, waterproof-finish metal grille |
| Color | Black (W-520) / White (W-520W) |
| Mounting | 360° rotatable aluminium bracket |
| Net Weight | 2.5 kg |
Product details
Tender specificationArchitect & engineer text, ready to paste into your spec
The wall mount loudspeaker shall be certified to EN54-24 and use a 5.25″ paper dual-cone driver. It shall incorporate a 100 V / 70 V line transformer with power taps of 30 W, 15 W, 7.5 W and 3.75 W, or operate at 8 Ω. Frequency response shall be 60 Hz – 20 kHz, with a sensitivity of 91 ± 3 dB (1 W / 1 m). The enclosure shall be fire-resistant ABS with a waterproof-finish metal grille, and shall include a ceramic terminal block, 95 °C fire-resistant cable and a thermal fuse. It shall be supplied with a 360° rotatable aluminium bracket. Dimensions shall be 230 × 160 × 135 mm (H × W × D), with a net weight of 2.5 kg.
