C-650D PoE Dante Ceiling Speaker

Key features

6.5″ coaxial driver with 1″ dome tweeter.
Built-in PoE power module and built-in Dante audio module: one RJ-45 cable carries both audio and power.
PoE input compatible with IEEE 802.3af / 802.3at / 802.3bt.
Built-in amplifier with single-stage DC-AC power conversion, soft switching, bidirectional energy recovery and precise PSM (phase modulation).
Audio routing managed in Dante Controller.
High sound pressure level output and large dynamic range.
Front wiring design for convenient installation.

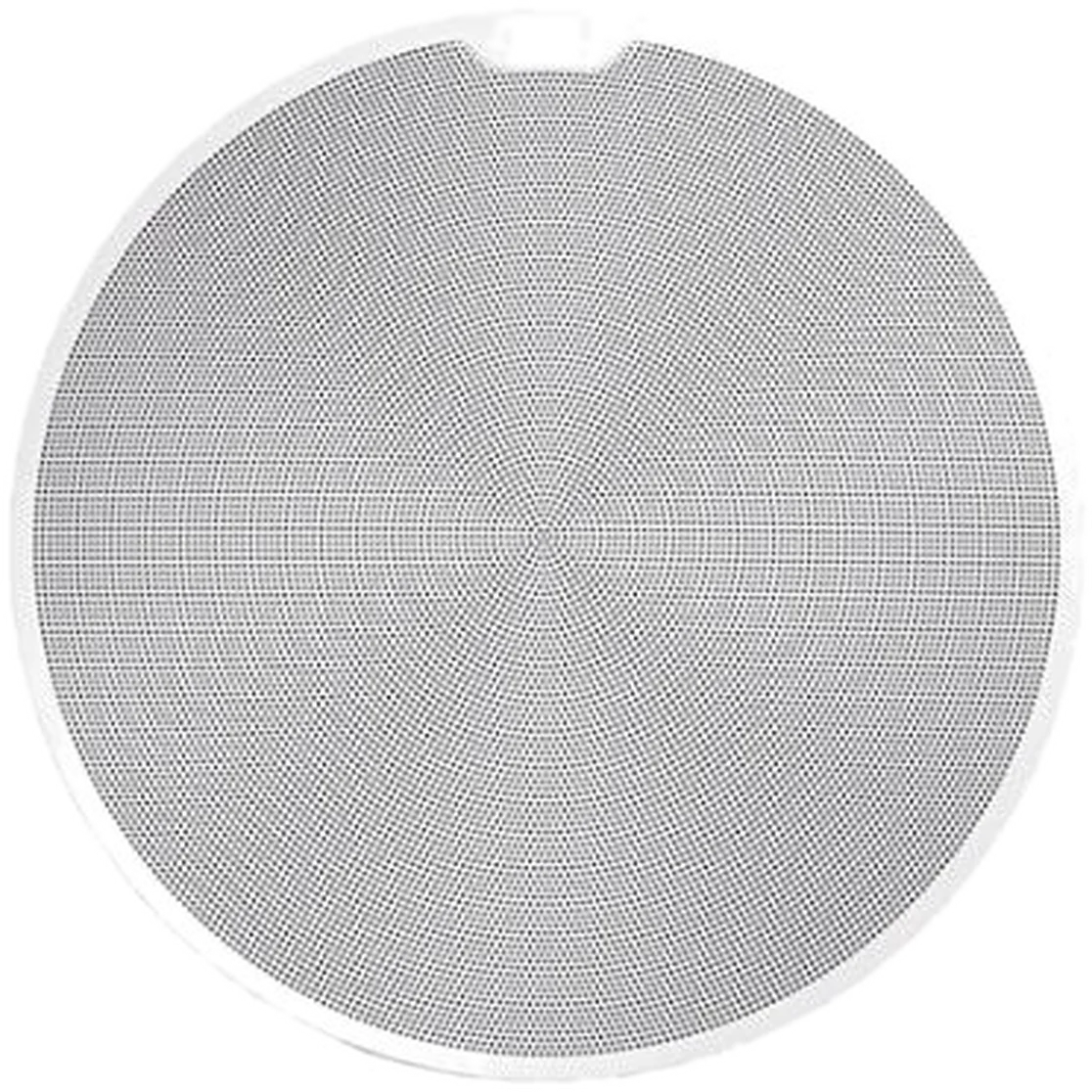

Grille held by 8 high-strength N42 magnets.
Compact embedded depth of 176 mm, suitable for narrow ceiling voids.
Natural convection cooling; metal mesh grille, ABS panel and iron back can.

Specifications

Model	C-650D
Description	6.5″ Coaxial PoE / Dante Ceiling Speaker
Speaker Unit	1 × 6.5″ + 1 × 1″ dome, coaxial design
Rated Impedance	8 Ω
Rated Power	50 W (200 W peak)
Frequency Response	85 Hz – 20 kHz
Sensitivity (1 W / 1 m)	89 dB
Max. SPL (rated band)	109 dB
Input Interface	RJ-45
Audio Protocol	Dante (routing via Dante Controller)
Power Input	PoE, IEEE 802.3af / 802.3at / 802.3bt
Cooling	Natural convection
Materials	Metal mesh grille, ABS panel, iron back can
Total Height / Embedded Depth	197 mm / 176 mm

Tender specificationArchitect & engineer text, ready to paste into your spec

The ceiling loudspeaker shall use a 6.5″ coaxial driver with a 1″ dome tweeter, with a built-in amplifier, PoE power module and Dante audio module, receiving audio and power over a single RJ-45 cable (IEEE 802.3af / at / bt). Rated power shall be 50 W (200 W peak) at 8 Ω, with a frequency response of 85 Hz – 20 kHz, a sensitivity of 89 dB (1 W / 1 m) and an SPL of 109 dB. It shall have front wiring, a metal mesh grille retained by 8 N42 magnets, an ABS panel and an iron back can, with natural convection cooling. Total height shall be 197 mm, with an embedded depth of 176 mm.
