BA-1616-DAP
Digital Audio Processor
16 × 16 Analog • Dante 64 × 64 • SHARC DSP • 24-bit / 48 kHz
The BA-1616-DAP is a freely designable audio processing and control system with an open software architecture. It offers 16 analog inputs and outputs, 64 × 64 Dante network audio channels (128 in total) and a front-panel HD colour screen that shows the unit’s working status. A wide range of DSP processing modules lets it solve real-world problems in theatres, conference centres, stadiums, places of worship and public sound reinforcement, with high-bandwidth, low- latency network audio at low cost.
- SHARC 21569 DSP + ARM
- 16 In / 16 Out Analog
- Dante 64 × 64 AES67
- 4 AFC / 2 AEC Auto Mixer
- HD Colour Screen
- Dual Gigabit Redundant Network
Key features
- Analog Devices SHARC 21569 DSP with NXP i.MX ARM processor.
- High-performance A/D and D/A converters, 24-bit / 48 kHz sampling.
- 16 analog inputs and 16 analog outputs with very low distortion and ultra-low noise.
- 64 × 64 Dante network audio channels, AES67 compatible.
- Dual Gigabit Ethernet ports for redundant network audio, plus a separate dual control network port for backup.
- Open signal-flow design with a visual, user-friendly control interface.
- Up to 3,400 EQ bands: graphic and parametric EQ, high/low-pass, all-pass and FIR filters, crossover, noise gate and limiter.
- 4 independent feedback cancellers and 2 independent echo cancellers, plus automatic mixing.
- Built-in USB sound card for multi-channel recording and playback, with selectable paths.
- Real-time signal monitoring, level metering and spectrum analysis on every channel.
- Front-panel HD colour screen showing device status, IP address and device name.
- Open WebSocket protocol for cloud integration, with RS232 and UDP central control.
- 8 programmable GPIO ports; all software built into the device, so no CD is needed.
Specifications
| Model | BA-1616-DAP |
|---|---|
| Analog Inputs / Outputs | 16 balanced/line inputs, 16 balanced/line outputs |
| Dante Channels | 64 inputs, 64 outputs (AES67 compatible) |
| RS232 Serial Interfaces | 1 |
| GPIO Interfaces | 8, freely configurable as inputs or outputs |
| RJ45 Interfaces | 4 |
| USB Interfaces | 1 × USB Type A, 1 × USB Type B |
| Sample Rate / Bit Depth | 48 kHz / 24-bit |
| Preamp Gain | 60 dB (3 dB per step, 20 steps) |
| Phantom Power | 48 V |
| Frequency Response | 20 Hz – 20 kHz, ±0.2 dB |
| THD+N | ≤ 0.003% @ 1 kHz, 4 dBu |
| A/D Dynamic Range (A-wtd) | 120 dB |
| D/A Dynamic Range (A-wtd) | 114 dB |
| Input Impedance (Balanced) | 20 kΩ |
| Output Impedance (Balanced) | 100 Ω |
| EIN (A-wtd) | ≤ −125 dBu |
| Channel Isolation | 100 dB @ 1 kHz, 4 dBu |
| Common Mode Rejection | 70 dB @ 50 Hz |
| S/N Ratio | 108 dB |
| Max. Input / Output Level | 18 dBu / 18 dBu |
| Background Noise | −90 dBu |
| Power Supply | AC 110–220 V, 50/60 Hz |
| Power Consumption | < 40 W |
| Operating Temperature | 0 – 40 °C |
| Operating Humidity | 10% – 90%, non-condensing |
| Dimensions (W × D × H) | 482 × 258 × 45 mm |
| Net / Package Weight | 2.2 kg / 2.7 kg |
| Package Size | 590 × 430 × 110 mm |

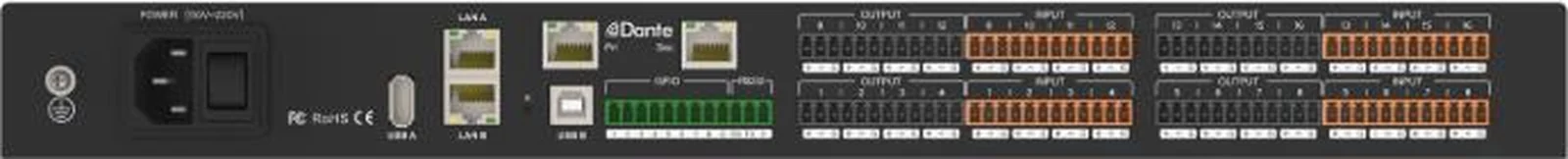

Product details
Tender specificationArchitect & engineer text, ready to paste into your spec
The digital audio processor shall be a 19″ 1U unit with an open signal-flow architecture, based on an Analog Devices SHARC 21569 DSP and an NXP i.MX ARM processor, with 24-bit / 48 kHz A/D and D/A converters. It shall provide 16 balanced analog inputs, 16 balanced analog outputs and 64 × 64 Dante network channels (AES67 compatible), with dual Gigabit Ethernet ports for redundant audio and 60 dB preamp gain (3 dB steps) with 48 V phantom power. Processing shall include up to 3,400 EQ bands, FIR filtering, crossover, noise gate, limiter, automatic mixing, 4 independent feedback cancellers and 2 echo cancellers. Frequency response shall be 20 Hz – 20 kHz (±0.2 dB), with THD+N ≤ 0.003% and S/N ratio of 108 dB. It shall include a front-panel HD colour screen, a USB sound card for recording and playback, RS232, 8 programmable GPIO ports and open WebSocket / UDP control. It shall operate from AC 110–220 V, 50/60 Hz, consume less than 40 W, measure 482 × 258 × 45 mm and weigh 2.2 kg.
