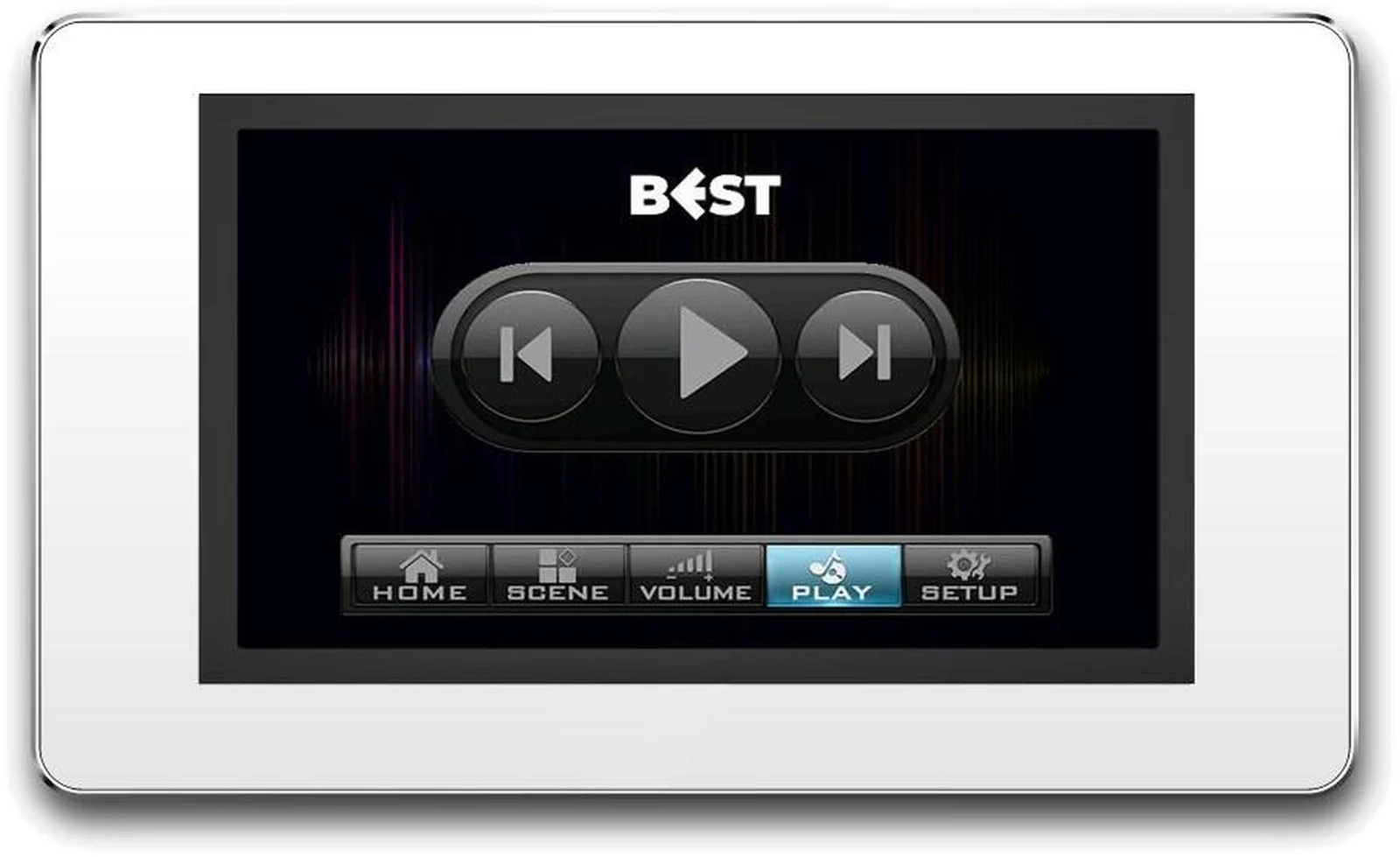

TP5
Touch Screen Control Panel
5″ Touch Screen • TCP/IP • PoE / 12 V DC
Control Panels
TP1 PLUS
Control Panel
1.3″ Display • Control Knob • UDP • PoE
The TP1 PLUS control panel lets users remotely control a digital audio processor, adjusting volume or switching application scenes. It can be programmed to match each installation and configured to control the processor directly. Powered by a PoE switch, it needs no custom cables or local power supply.
- 1.3″ Display
- Parameter Control Knob
- Volume & Scene Control
- UDP over RJ-45, 100 m
- PoE 802.3af
- Aluminium Alloy
Key features
- Wall-mounted remote control panel for BEST digital audio processors.
- Adjusts processor volume and switches application scenes.
- Fully programmable to suit the needs of each installation.
- 1.3″ display with a single parameter control knob.
- Controls the processor over UDP via a standard RJ-45 network cable (CAT-5/6/7), up to 100 m.
- Powered by a PoE switch (IEEE 802.3af), with no custom cables or local power supply needed.
- Sandblasted aluminium alloy front panel in black.
Specifications
| Model | TP1 PLUS |
|---|---|
| Power Supply | PoE (IEEE 802.3af) |
| Control Protocol | UDP |
| Control Cable | RJ-45 (CAT-5 / 6 / 7) |
| Control Cable Length | ≤ 100 m |
| Display Size | 1.3″ |
| Control Knob | 1 |
| Material | Sandblasted aluminium alloy |
| Color | Black |
| Operating Temperature | −10 – 40 °C |
| Dimensions | 86 × 26 × 105 mm |
Tender specificationArchitect & engineer text, ready to paste into your spec
The control panel shall be a wall-mounted remote controller for digital audio processors, with a 1.3″ display and one parameter control knob, allowing volume adjustment and scene switching. It shall be user-programmable and communicate with the processor over UDP via an RJ-45 (CAT-5/6/7) cable up to 100 m. It shall be powered by PoE (IEEE 802.3af), with a black sandblasted aluminium alloy finish, an operating temperature of −10 to 40 °C and dimensions of 86 × 26 × 105 mm.
