Ceiling Speakers

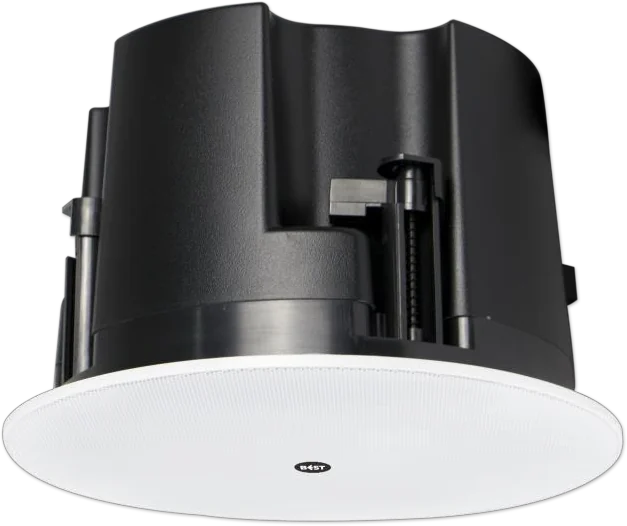

C-620
6.5″ 2-Way Ceiling Speaker
30 W • 100 V / 8 Ω • 90 dB • 60 Hz – 20 kHz
Pendant Speakers

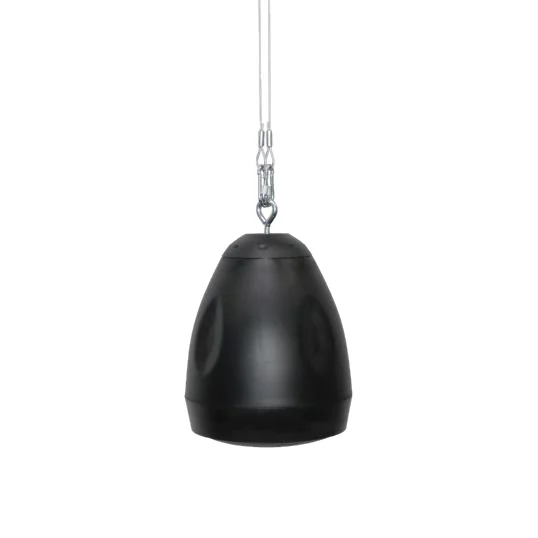

PS-530K
Pendant Speaker
5.25″ 2-Way • 30 W • 100 V / 8 Ω • IP44
- IP44 Indoor Use
- BGM & Paging
- 5.25″ Woofer 1″ Tweeter
- 30 W Max. Tap
- 100 V / 8 Ω Power Tapping

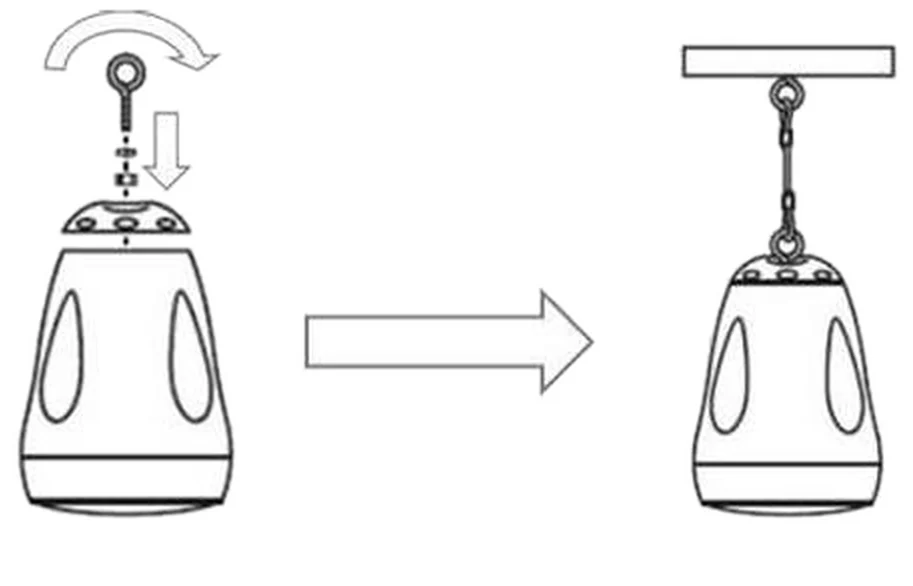

- Indoor Safety Hanging Wire
Key features
- Indoor public address (PA) pendant speaker.
- Commercial audio pendant speaker with built-in transformer.
- Ideal for background music (BGM) and paging systems.
- Indoor applications: restaurants, offices, auditoriums, gymnasiums and shopping malls.
- IP44-rated indoor pendant speaker with safety hanging wire.
- UV-resistant ABS cabinet and metal grille for durable use, in black.

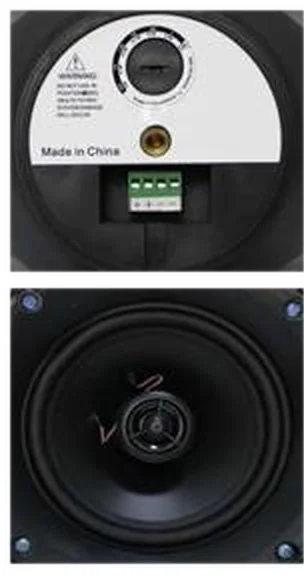

- 5.25″ woofer and 1″ tweeter, 2-way speaker system.
- 100 V power taps: 30 / 15 / 7.5 / 3.8 W, or 8 Ω low-impedance operation.
Specifications
| Model | PS-530K |
|---|---|
| Description | Pendant Speaker |
| Power Taps (100 V) | 30 / 15 / 7.5 / 3.8 W & 8 Ω |
| Speaker Unit | 5.25″ woofer + 1″ tweeter, 2-way system |

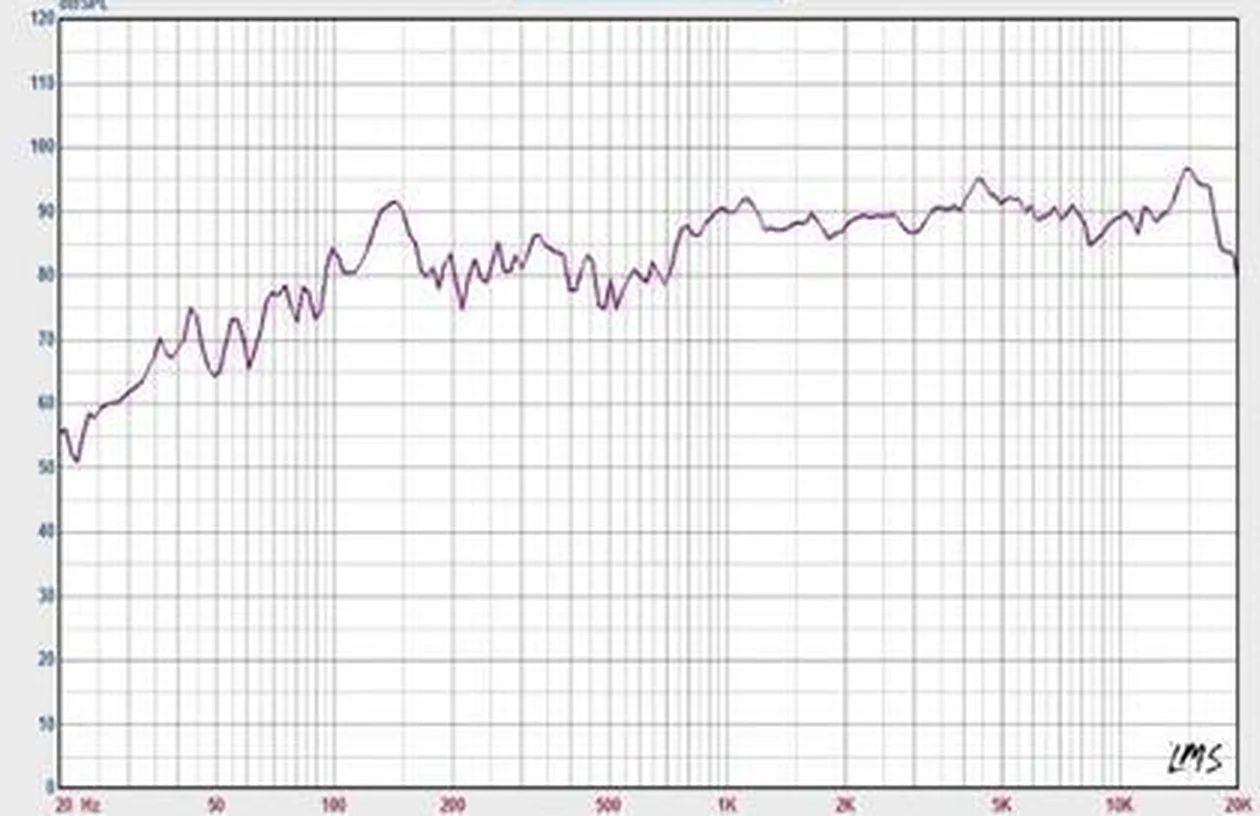

| Frequency Response | 65 Hz – 20 kHz |
| Sensitivity (1 W / 1 m) | 90 dB |
| IP Rating | IP44 |

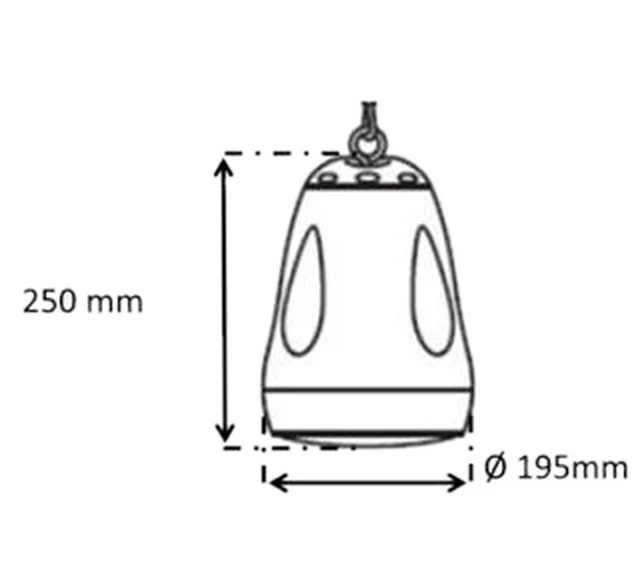

| Dimensions (Ø × H) | Ø 195 × 250 mm |
| Material | UV-resistant ABS enclosure, metal grille |
| Color | Black |
| Mounting | Pendant, with safety hanging wire |
| Net Weight | 2.4 kg |
Product details
Tender specificationArchitect & engineer text, ready to paste into your spec
The pendant loudspeaker shall be a 2-way design with a 5.25″ woofer and a 1″ tweeter, intended for indoor background music and paging applications. It shall incorporate a 100 V line transformer with power taps of 30 W, 15 W, 7.5 W and 3.8 W, or operate as a low-impedance 8 Ω version. Frequency response shall be 65 Hz – 20 kHz, with a sensitivity of 90 dB (1 W / 1 m). The enclosure shall be made of UV-resistant ABS with a metal grille, finished in black, and rated IP44 for indoor use. The loudspeaker shall be supplied with a safety hanging wire for pendant installation. Dimensions shall be Ø 195 × 250 mm, with a net weight of 2.4 kg.
